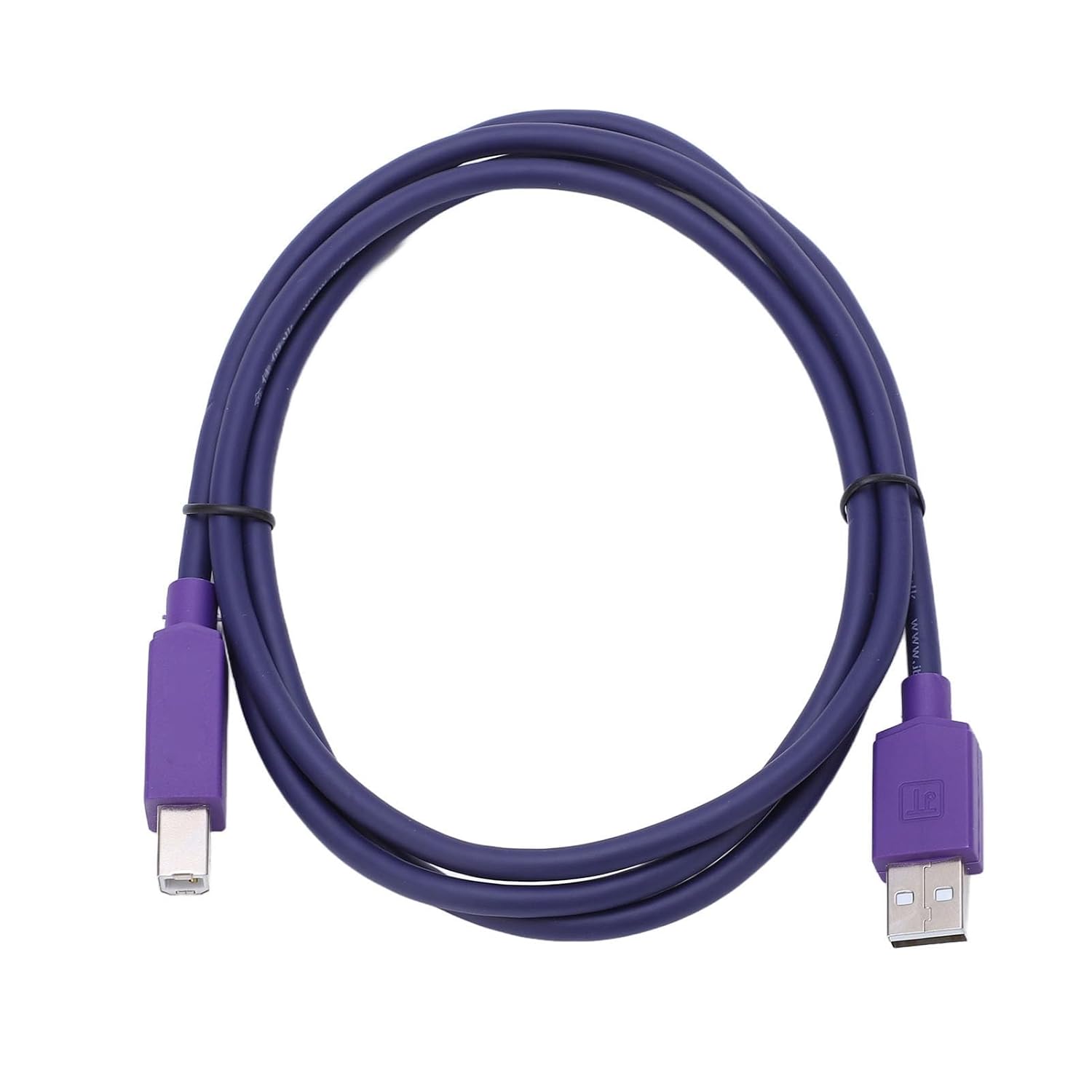

16 Channels Logic Analyzer Logic Analyzer Logic Analyzer USB Logic Analyzer with USB Cable Oscilloscope Analyzer with 200M Sampling Rate Adjustable Threshold ‑50V to 50V LA2016

1. SUPPORT LINKAGE: The waveform window and the analysis result window can be linked, which is convenient for finding waveforms and data in various ways2. FLEXIBLE AND EASY TO USE: The sampling data can be exported to .txt, .cSV, .bin and other format files, which can be opened, viewed or edited with other software, such as using Excel to open csv to find and organize data, and using Matlab to bin for further analysis, etc.3. DISPLAY FORMAT OF DECODED DATA: Support binary, decimal, hexadecimal, ASCII and hexadecimal data, easy to observe and analyze4. SIMPLE INTERFACE: Intuitive and concise setting interface, conditions include transition , high and low level, or a combination of the two, etc.5. THRESHOLD ADJUSTABLE: Compatible with various level standards, such as 5VTTL, 5 CMOS, 3.3 V CMOS, 3.0V CMOS, 2.5VCM0S, 1.8 V CMOS, 1.5 V CMOS, 1.2 V CMOS, 0.9V CMOS, etc.Spec:Item Type: Logic AnalyzerModel Number: LA2016Number of Channels: 16Supported Modes: Normal mode (the data is collected and then transferred to the computer, the sampling rate is higher); Streaming mode (the collected data is transmitted to the computer at the same time, the sampling time is longer)Maximum Sampling Rate: Normal Mode: 200M (16 channels); Streaming Mode: 100M (3 channels), 50M (6 channels), 20M (16 channels)Highest Frequency Can Be Collected: 40MHzMinimum Captureable Pulse Width: 12.5nsBuilt in Hardware Memory Capacity: 1GbitsMaximum Hardware Storage Depth (ensure the achievable sampling depth): 50MMaximum Compression Sampling Depth(not guaranteed to reach the sampling depth): 10G (lossless compression sampling mode, effectively improve the depth when collecting lower frequency s)Maximum Sampling Depth In Streaming Mode: 100G (the actual depth may be limited by the memory capacity of the computer, each level transition of each channel needs to occupy 5Bytes of

• Display Format Of Decoded Data--Support binary, decimal, hexadecimal, ASCII and hexadecimal data, easy to observe and analyze
• Intuitive Interface--Intuitive and concise setting interface, conditions include transition , high and low , or a combination of the two, etc.
• Support Linkage--The waveform window and the analysis result window can be linked, which is convenient for finding waveforms and data in various ways
• Flexible And Easy To Use--The sampling data can be exported to .txt, .cSV, .bin and other format files, which can be opened, viewed or edited with other software, such as using Excel to open csv to find and organize data, and using Matlab to bin for further analysis, etc.
• Threshold Adjustable--Compatible with various standards, such as 5VTTL, 5 CMOS, 3.3 V CMOS, 3.0V CMOS, 2.5VCM0S, 1.8 V CMOS, 1.5 V CMOS, 1.2 V CMOS, 0.9V CMOS, etc.
