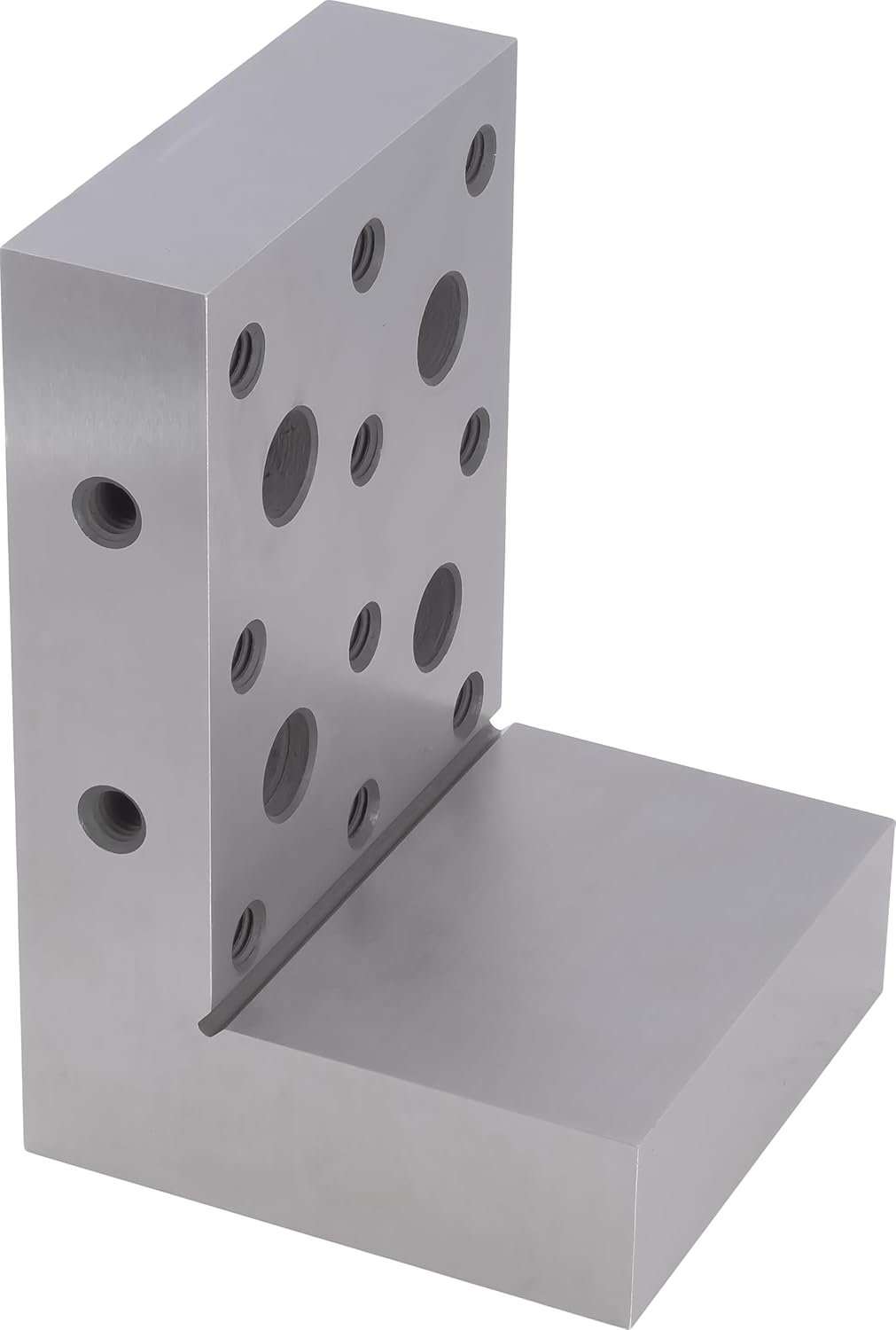

CME Fixture Angle Plate, Hardened Steel, 6" Length x 6" Width x 4" Height, 1/4"-20 Tapped Holes, Precision 90° Fixturing for Machining, Inspection, Assembly and Welding
Product details
| Management number | 219298893 | Release Date | 2026/05/03 | List Price | US$67.24 | Model Number | 219298893 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This angle plate contains the following holes:8 Threaded Blind Holes (1/4"-20 Thread Size)21 Through Holes (7/32" Dia.)8 Counterbored Through Holes (1/2" Counterbore Dia. × 5/16" Hole Dia.)21 Through Holes (7/32" Dia.)
- Fixture angle plate; Used to securely mount or align workpieces at a right angle during machining, drilling, or inspection operations
- Hardened steel construction; stress-relieved for dimensional stability under load
- Precision ground on all working surfaces; 0.0002" squareness and 0.0002" parallelism
- 6" Length x 6" Width x 4" Height x 1 1/4" Thickness
- See description for information about the holes machined into the angle plate
| Item Weight | 19 pounds |
|---|---|
| Manufacturer | CME Tools |
